For hemodynamic pressure measurement and cardiac output monitoring
Corodyn Standard Portfolio

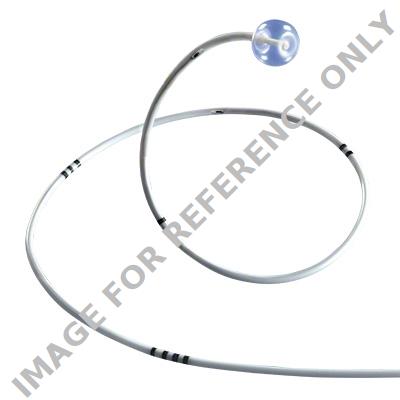

Corodyn P1 - Balloon flotation catheter for hemodynamic pressure measurement
Corodyn P2 – Dual-lumen balloon flotation catheter for hemodynamic pressure measurement with an additional lumen for simultaneous pressuremonitoring or infusion and drug administration
Corodyn TD – Four-lumen thermodilution balloon catheter for hemodynamic pressure measurement and cardiac output monitoring
Corodyn TD-I – Five-lumen thermodilution balloon catheter for hemodynamic pressure measurement and cardiac output monitoring, with an additional lumen for simultaneous pressure monitoring or infusion and drug administration
Corodyn touch free – Corodyn TD or TD-I with preassembled “touch free” foil protection sleeve (contamination protection)
Catheter, made of PUR
Shaft length: 110 cm
Shaft diameter: 5 F – 7.5 F
Markings every 100 mm from catheter tip for precise positioning
Radiopaque
Ballon, made of latex
Inflation syringe
Disposable syringe with plunger brake for defined air and CO₂ dosing
Corodyn TD and TD-I
Thermistor 3.5 cm from catheter tip
3-pin special connector for use with standard patient monitors
Corodyn P1 - Balloon flotation catheter for hemodynamic pressure measurement
Corodyn P2 – Dual-lumen balloon flotation catheter for hemodynamic pressure measurement with an additional lumen for simultaneous pressuremonitoring or infusion and drug administration
Corodyn TD – Four-lumen thermodilution balloon catheter for hemodynamic pressure measurement and cardiac output monitoring
Corodyn TD-I – Five-lumen thermodilution balloon catheter for hemodynamic pressure measurement and cardiac output monitoring, with an additional lumen for simultaneous pressure monitoring or infusion and drug administration
Corodyn touch free – Corodyn TD or TD-I with preassembled “touch free” foil protection sleeve (contamination protection)
Catheter, made of PUR
Shaft length: 110 cm
Shaft diameter: 5 F – 7.5 F
Markings every 100 mm from catheter tip for precise positioning
Radiopaque
Ballon, made of latex
Inflation syringe
Disposable syringe with plunger brake for defined air and CO₂ dosing
Corodyn TD and TD-I
Thermistor 3.5 cm from catheter tip
3-pin special connector for use with standard patient monitors
